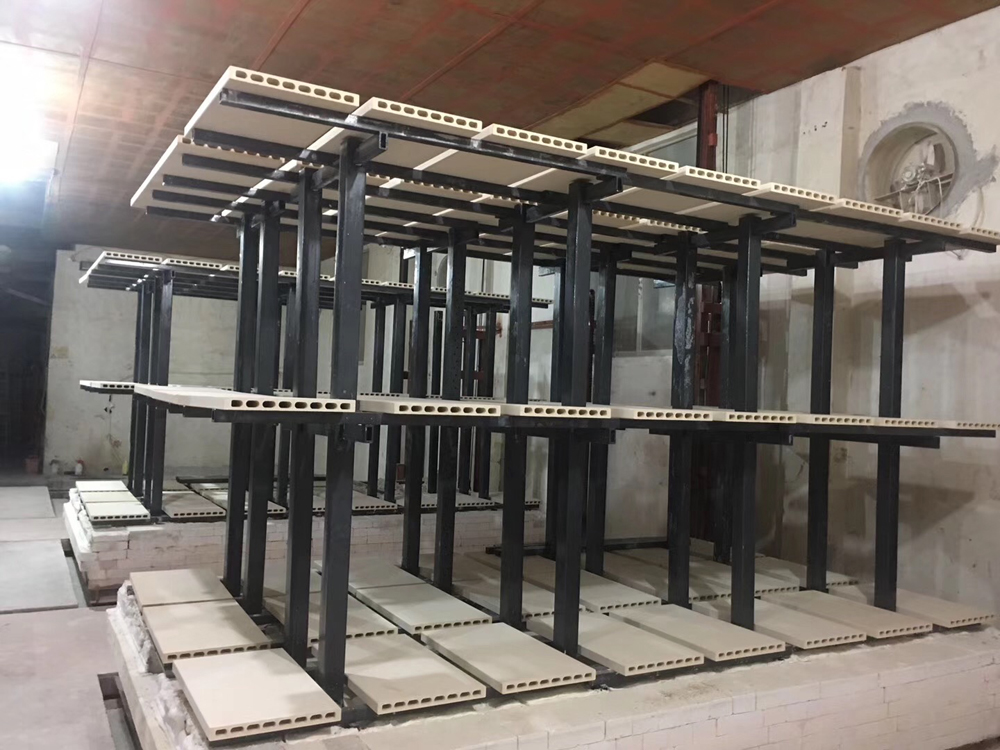

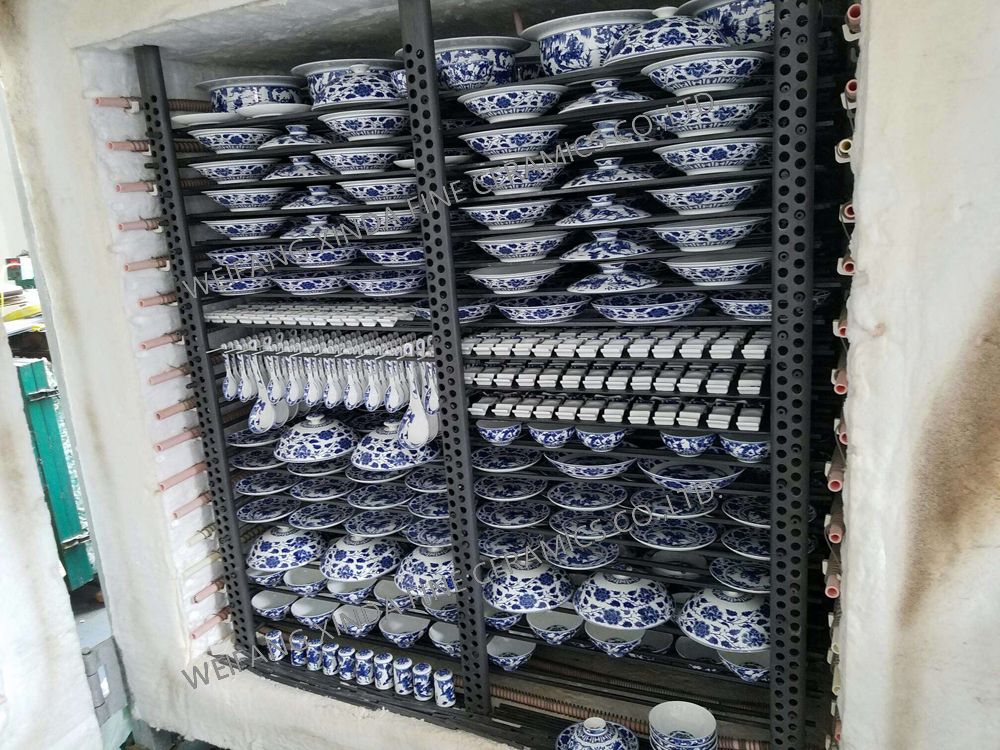

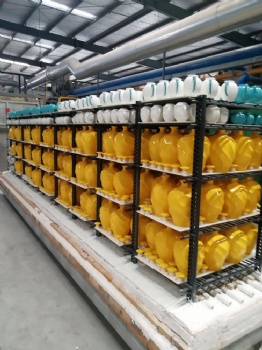

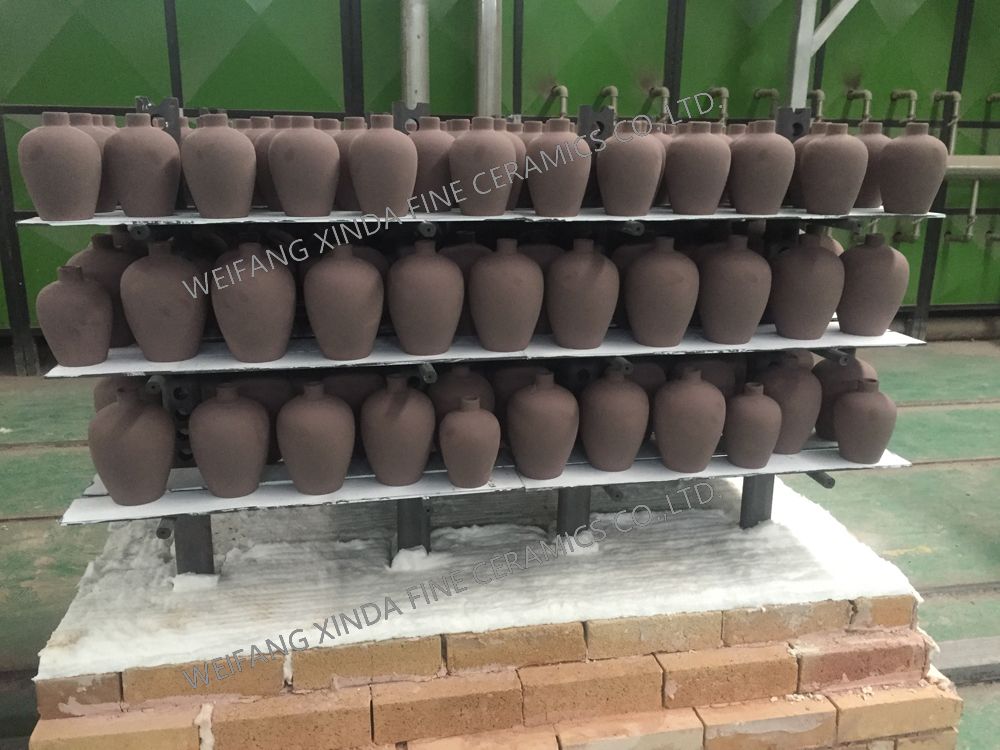

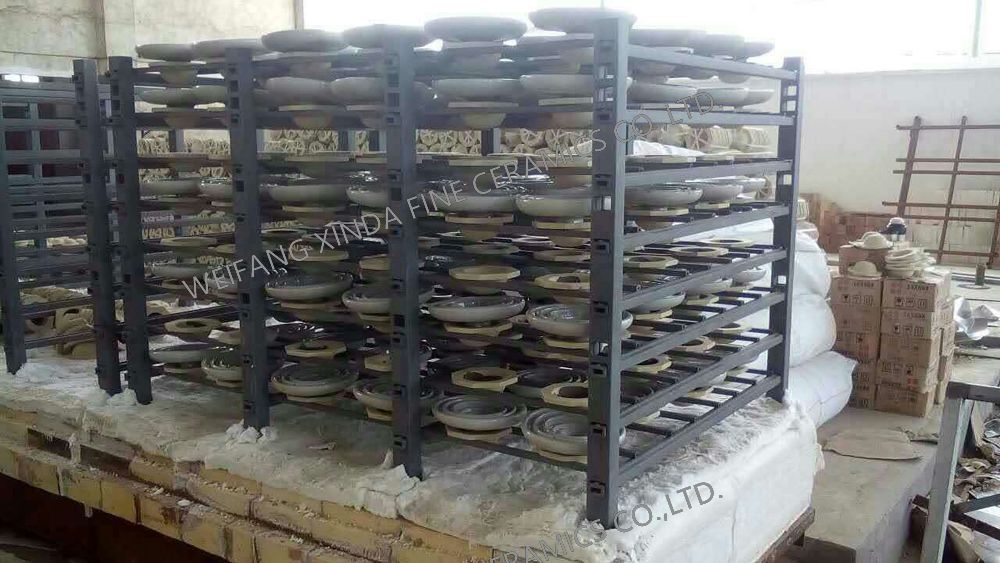

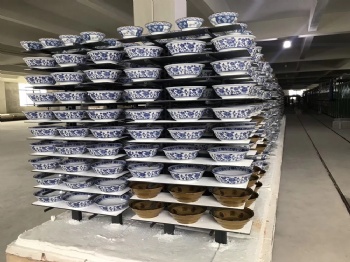

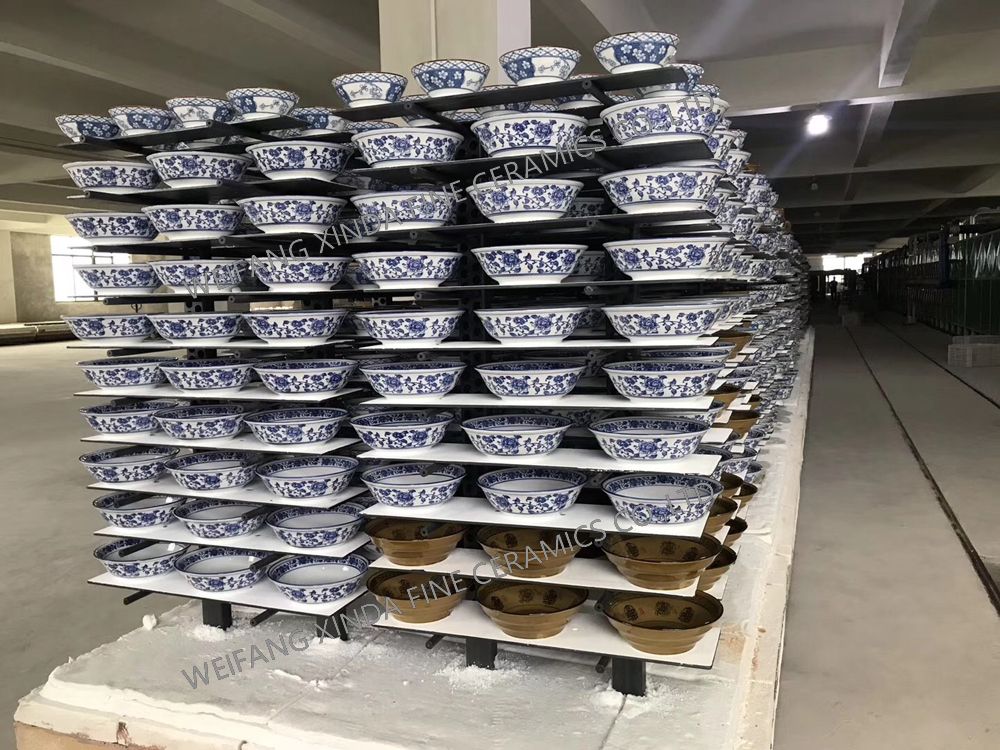

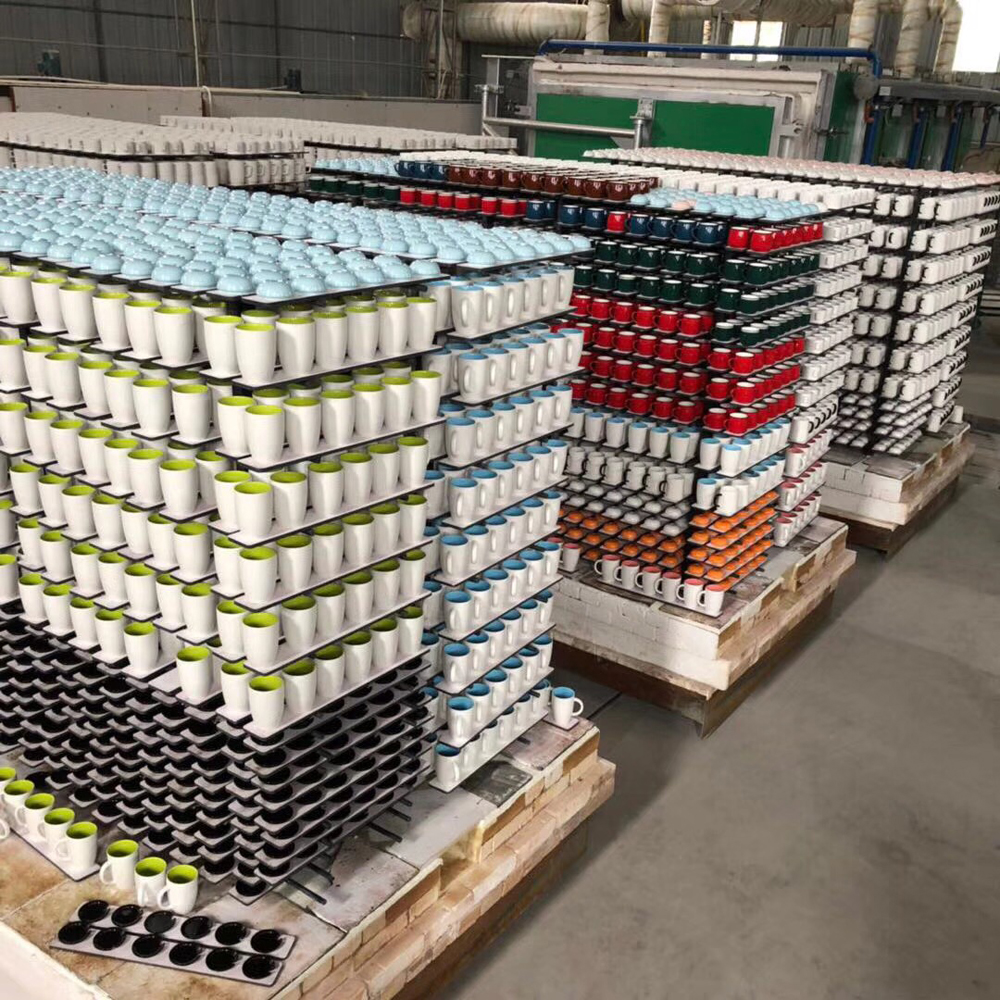

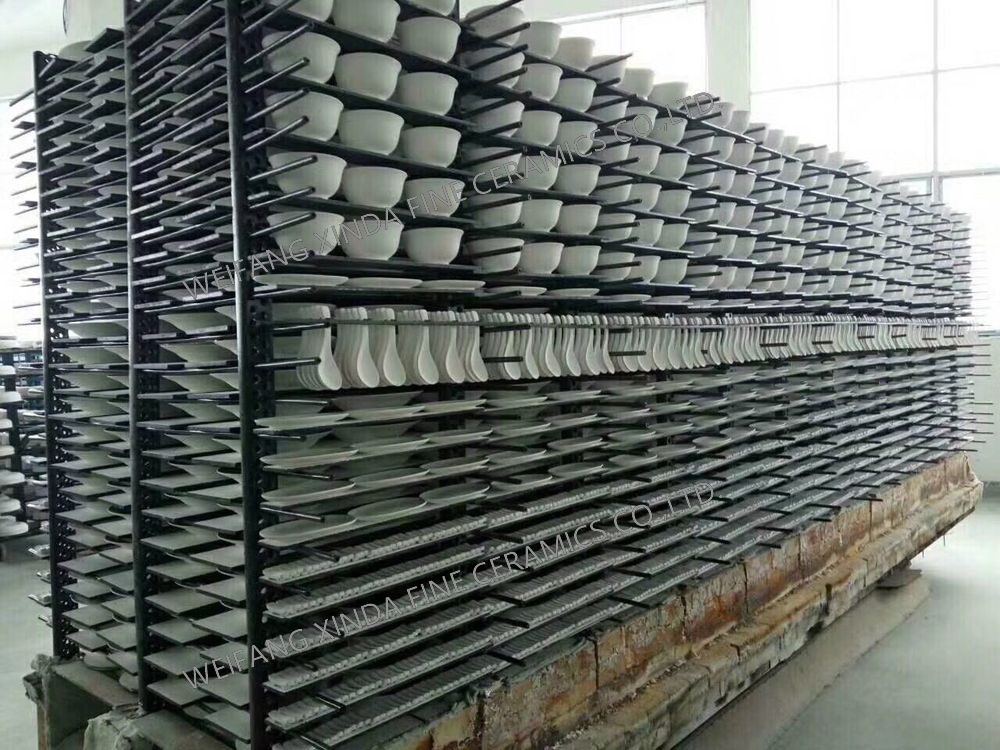

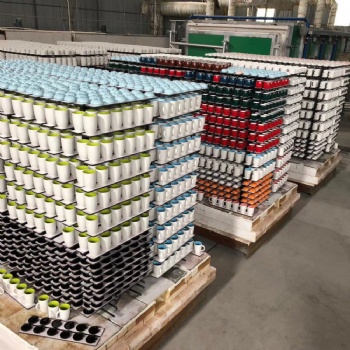

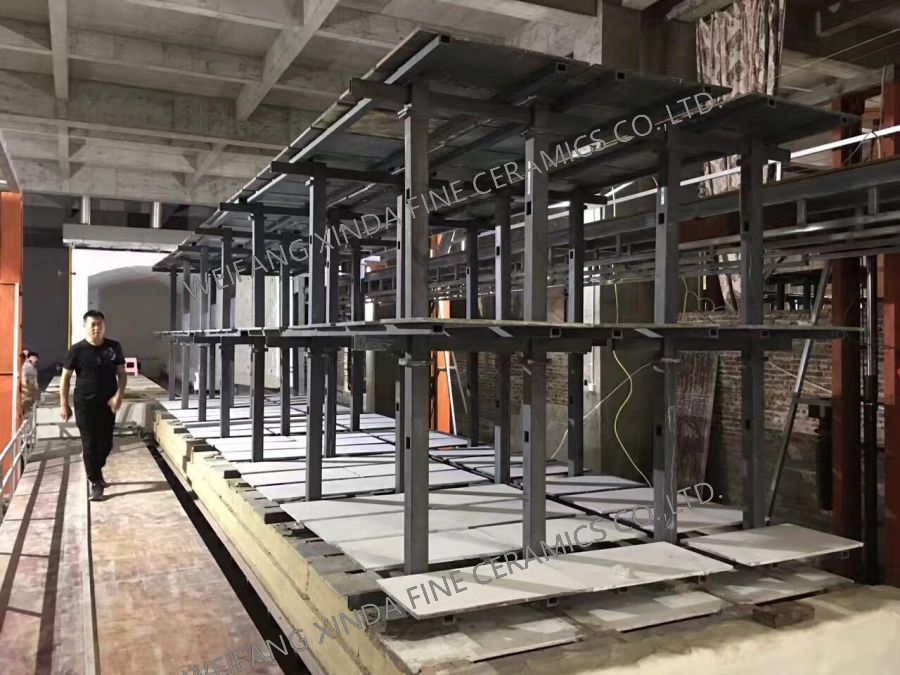

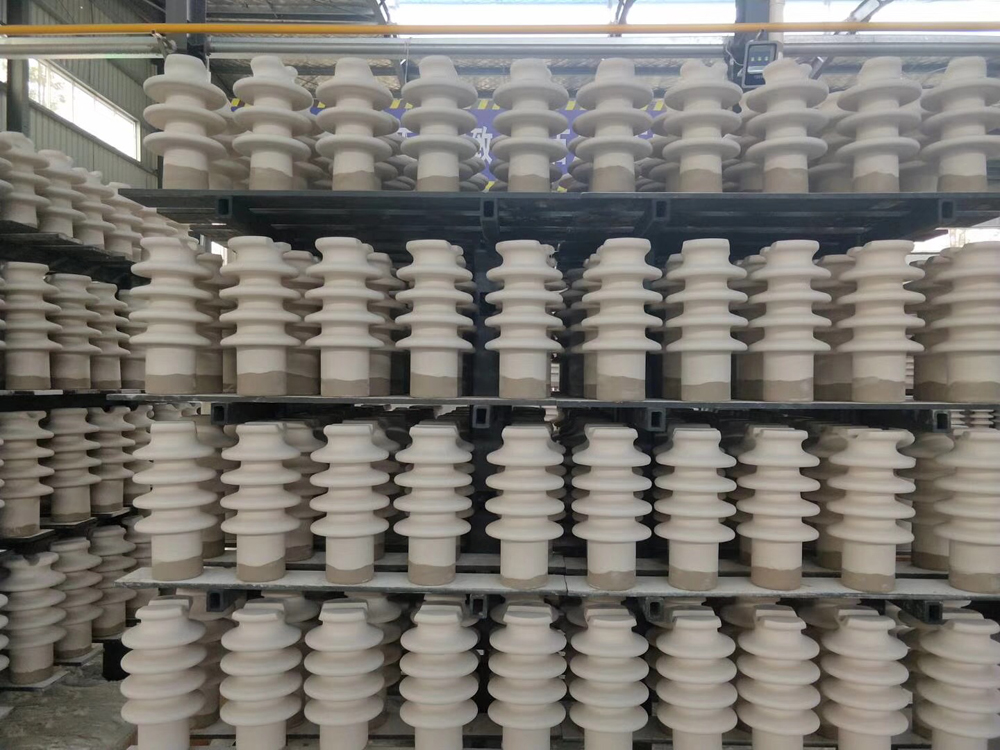

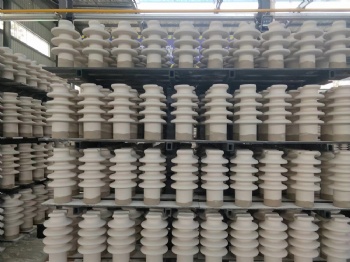

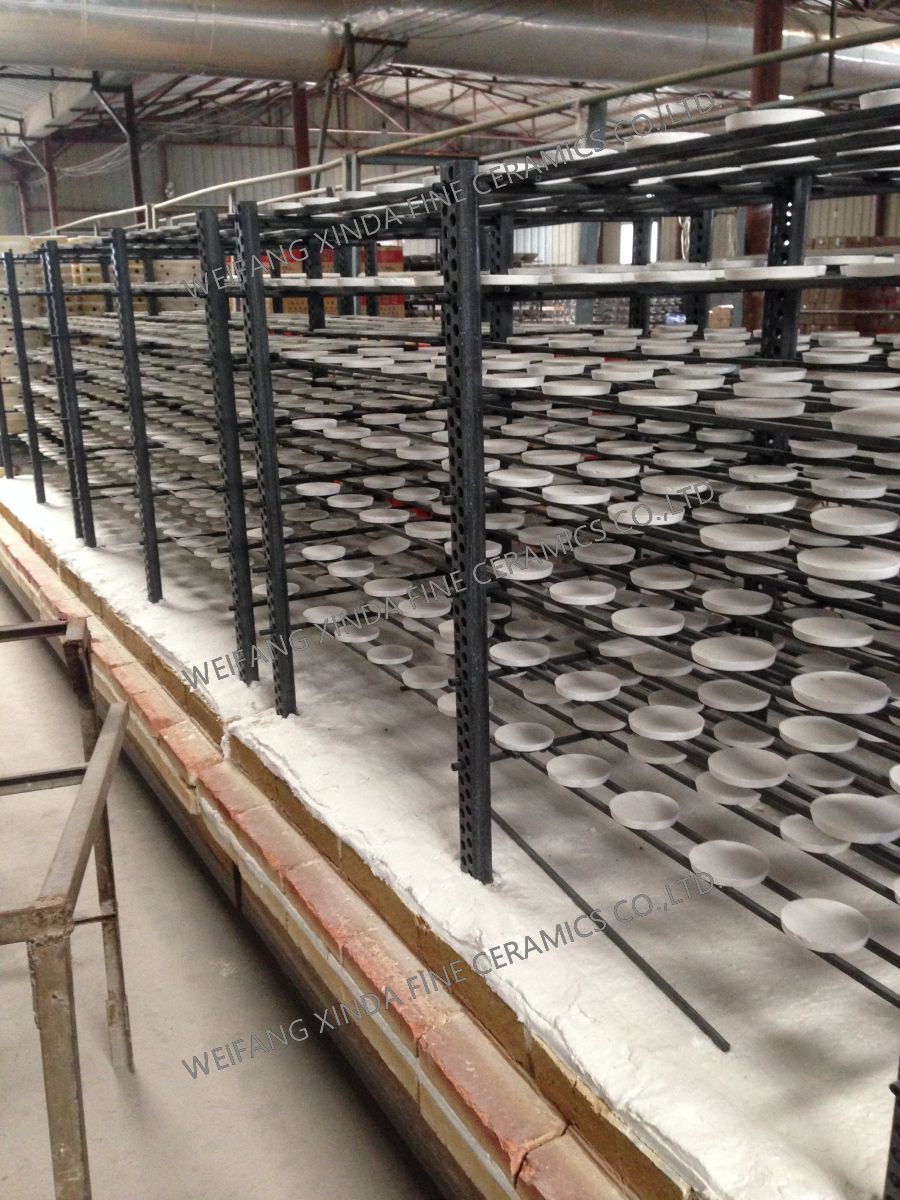

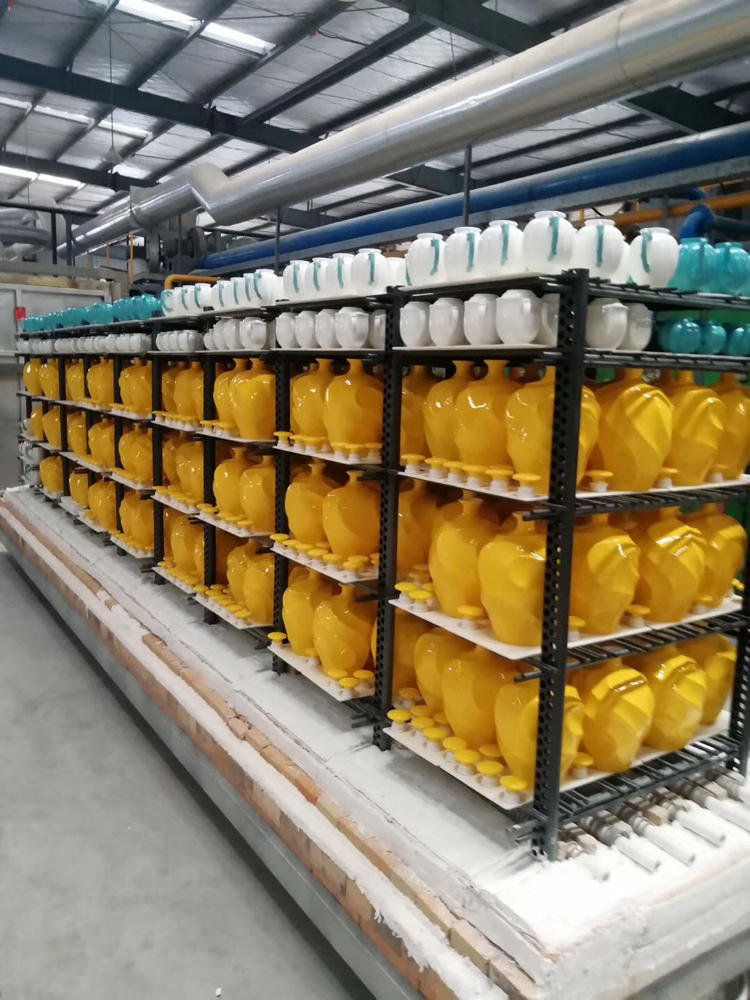

SiC frame type energy saving kiln is suitable for tunnel kilns, shuttle kilns, some roller kilns and other kiln high temperature bearing structure frame, high temperature strength has good thermal conductivity, frame type structure adopts porous column main beam Beam or thin plate with combination of the kiln, layer number of products can be adjusted freely, greatly reduce the overall weight of the kiln furniture and frame structure, convenient operation and greatly increasing the loading density of the product, and because of reaction-bonded sic materials thermal conductivity, excellent energy-saving than traditional kiln, kiln furniture are made of silicon carbide frame type energy saving more than 20% at least, and greatly increase the service life Pre-reaction sintered SiC frame type energy saving kiln furniture has been widely used in daily porcelain, sanitary ware ceramics, high voltage electric porcelain and other ceramic industries.
PRODUCT DESCRIPTIONSilicon carbide frame type energy saving kiln is suitable for tunnel kilns, shuttle kilns, some roller kilns and other kiln high temperature bearing structure frame, high temperature strength has good thermal conductivity, frame type structure adopts porous column main beam Beam or thin plate with combination of the kiln, layer number of products can be adjusted freely, greatly reduce the overall weight of the kiln furniture and frame structure, convenient operation and greatly increasing the loading density of the product, and because of reaction-bonded sic materials thermal conductivity, excellent energy-saving than traditional kiln, kiln furniture are made of silicon carbide frame type energy saving more than 20% at least, and greatly increase the service life Pre-reaction sintered SiC frame type energy saving kiln furniture has been widely used in daily porcelain, sanitary ware ceramics, high voltage electric porcelain and other ceramic industries.
Feature
◊ Superior wear resistance, impact resistance and corrosion resistance
◊ Excellent flatness and temperature resistance up to 1380℃
◊ Excellent oxidation resistance
◊ Good dimensional control of complex shapes
◊ Easy installation
◊ Longer service life ( about 6 times more than that of alumina ceramic )
Product Parameters
| Item | Unit | Data |
| Temperature of application | °C | ≤1380 |
| Density | g/cm³ | ﹥3.02 |
| Open porosity | % | 0 |
| Bending strength | Mpa | 250(20°C ) |
| Mpa | 280(1200°C ) | |
| Modulus of elasticity | Gpa | 330(20°C ) |
| Gpa | 300(1200°C ) | |
| Thermal conductivity | W/m.k | 45(1200°C) |
| Coefficient of thermal expansion | K∧-1×10∧-6 | 4.5 |
| Rigidity | 9.6 | |
| Acid-proof alkaline | 45(1200°C) |
COMPANY PROFIEWeifang Xinda Fine Ceramics Co.,LTD.was established in 2014.The company serves electric power,iron and steel,mining,metallurgy,chemical industry,coal,wet flue gas desulfurization,industrial kilns and other special industries.

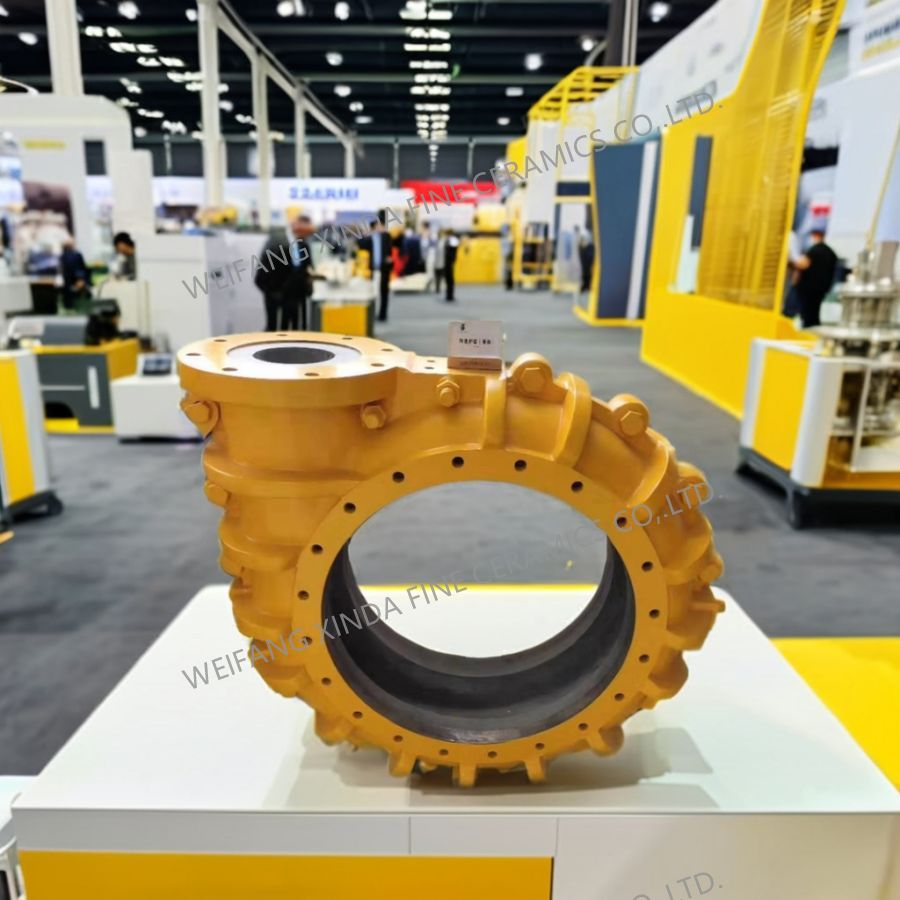

The company has introduced German advanced technology and is in a leading position.The main products are Silicon carbide cyclone liner,Silicon carbide burner nozzle,Silicon carbide frame energy-saving kiln furniture,silicon carbide grinding barrel,silicon carbide radiant tube,silicon carbide slurry pump impeller,silicon carbide desulfurization nozzle,silicon carbide beam,silicon carbide roller,silicon carbide plate,silicon carbide wear resistant,silicon carbide crucible,silicon carbide heat-exchanger tube,silicon carbide wafer boat and other products.The hardness of the product is second only to diamond,and it has the main characteristics of high strength,high hardness,high wear resistance,corrosion resistance,high temperature oxidation resistance,cold and heat resistance,high thermal efficiency.It is one of the products with the best performance and the highest cost performance in the field of special industrial ceramics.
Our company's reaction sintered silicon carbide products have reached the European industry standards,quality reached the world advanced level,the products have been exported to Russia,Korea,Japan, Vietnam,the United States,Germany,Italy, South Africa, Australia, Malaysia,Thailand, the United Arab Emirates and other countries and regions. With the tenet of quality first,customer first,we sincerely welcome friends from all over the world to discuss cooperation and create a better future together.
