Sic Rbsic Silicon Carbide Frame Energy-Saving Kiln Furniture Plate Silicon Carbide Ceramic Plates

Sic Rbsic Silicon Carbide Frame Energy-Saving Kiln Furniture Plate Silicon Carbide Ceramic Plates

SiC frame type energy saving kiln is suitable for tunnel kilns, shuttle kilns, some roller kilns and other kiln high temperature bearing structure frame, high temperature strength has good thermal conductivity, frame type structure adopts porous column main beam Beam or thin plate with combination of the kiln, layer number of products can be adjusted freely, greatly reduce the overall weight of the kiln furniture and frame structure, convenient operation and greatly increasing the loading density of the product, and because of reaction-bonded sic materials thermal conductivity, excellent energy-saving than traditional kiln, kiln furniture are made of silicon carbide frame type energy saving more than 20% at least, and greatly increase the service life Pre-reaction sintered SiC frame type energy saving kiln furniture has been widely used in daily porcelain, sanitary ware ceramics, high voltage electric porcelain and other ceramic industries.

Inquiry Now

logo1.pngPRODUCT DESCRIPTION

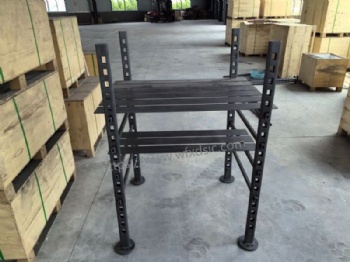

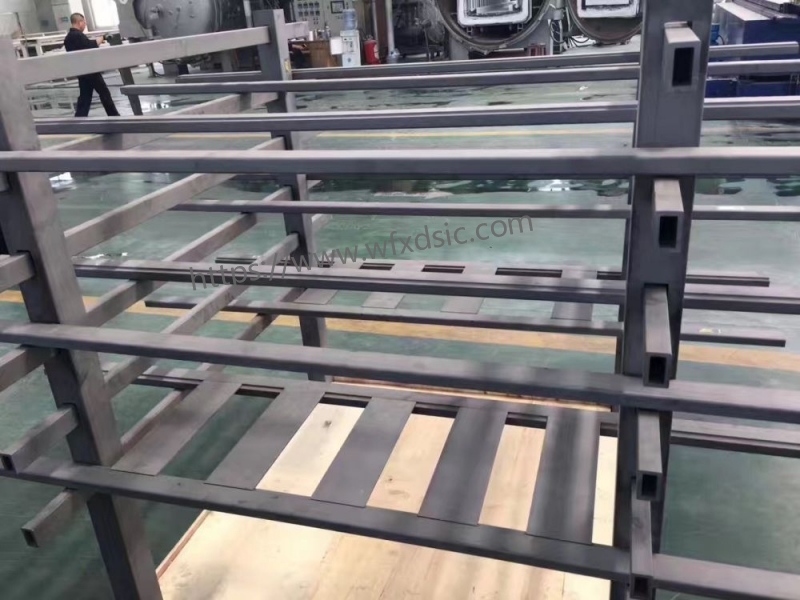

Silicon carbide frame type energy saving kiln

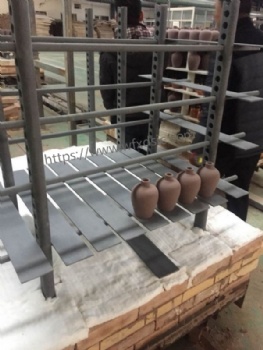

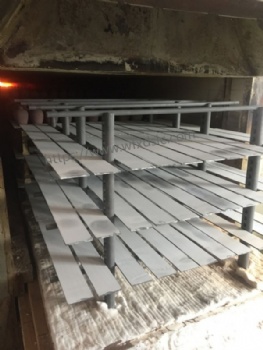

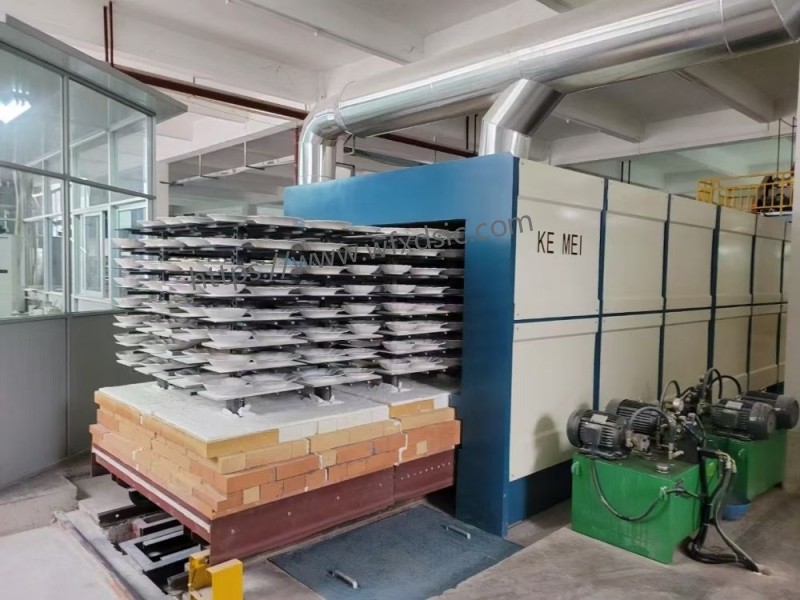

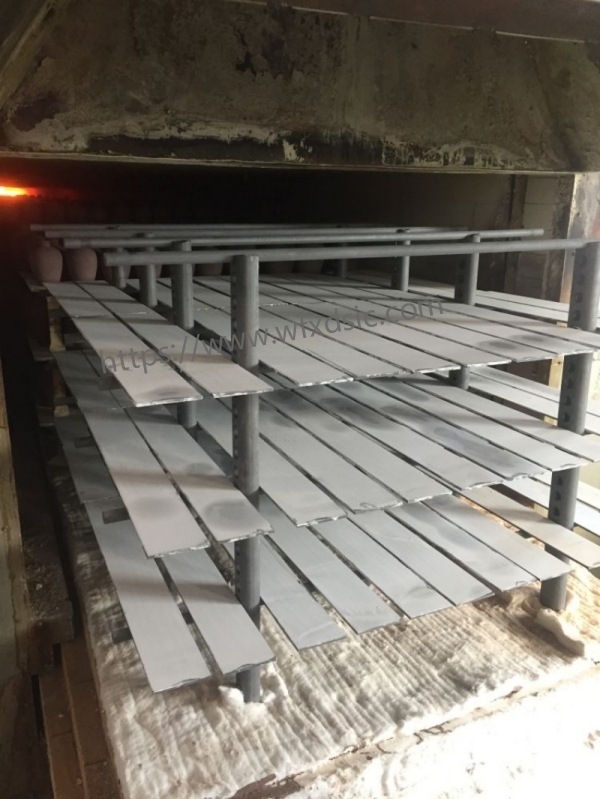

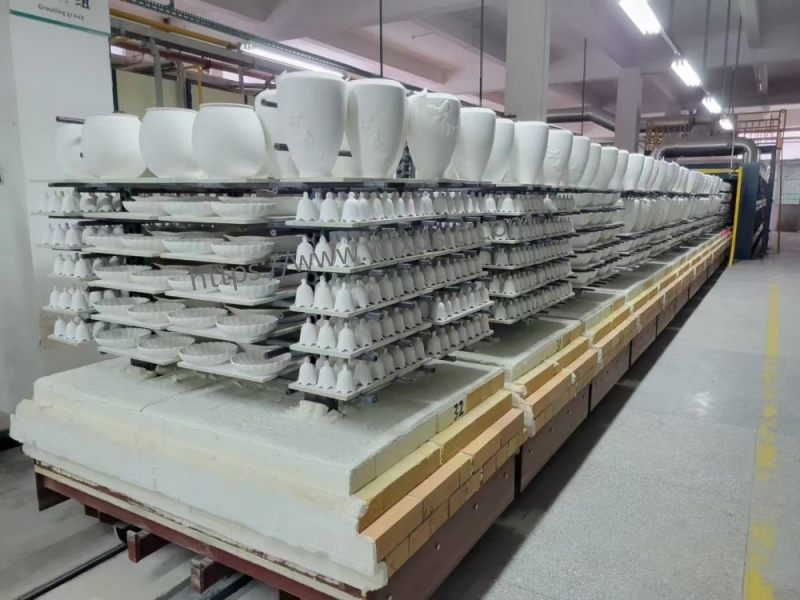

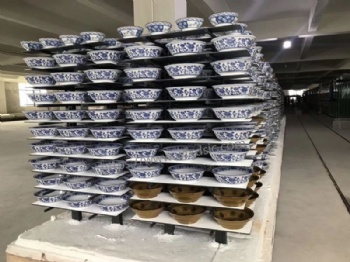

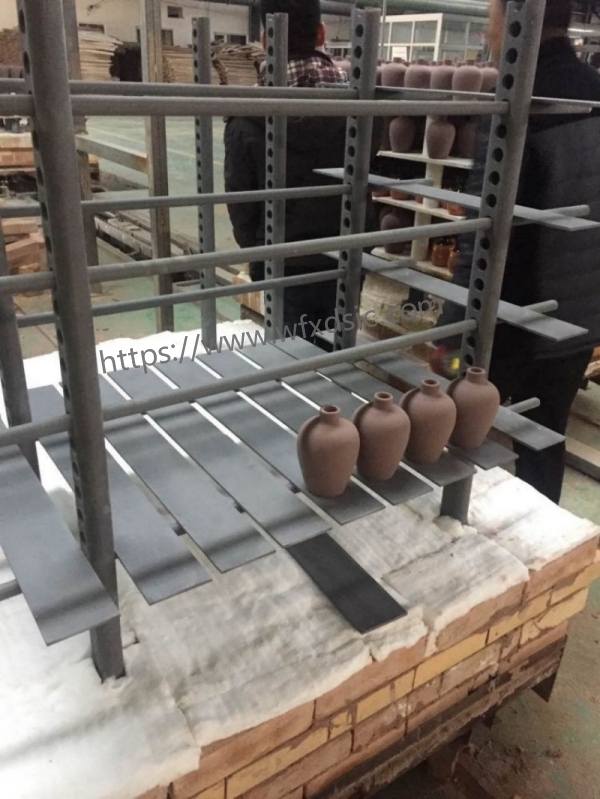

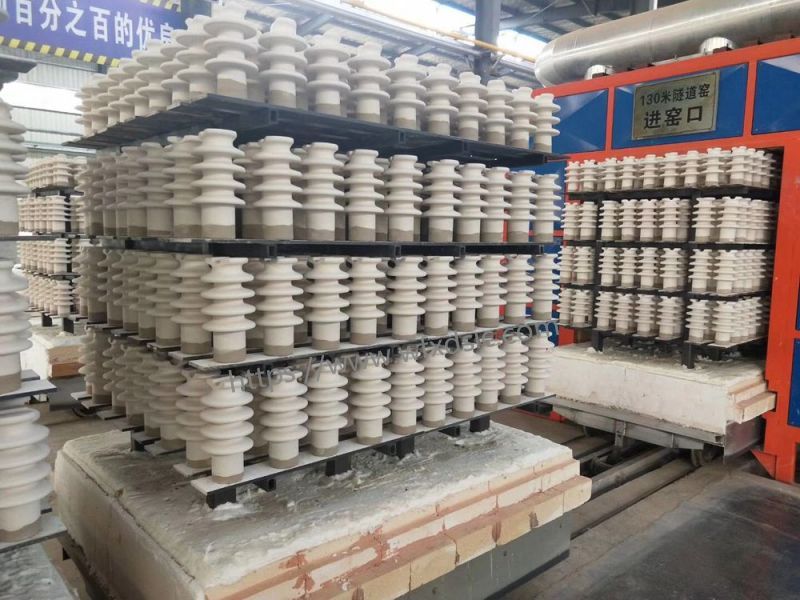

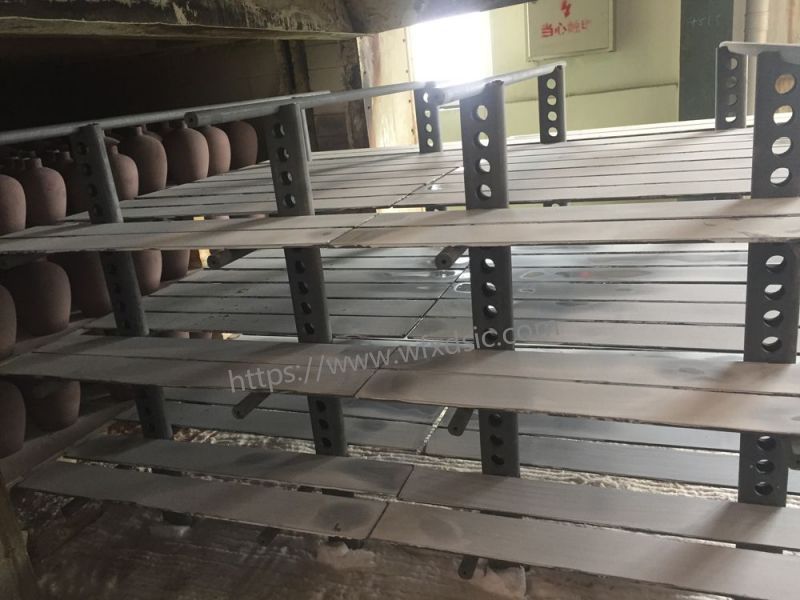

Silicon carbide frame type energy saving kiln is suitable for tunnel kilns, shuttle kilns, some roller kilns and other kiln high temperature bearing structure frame, high temperature strength has good thermal conductivity, frame type structure adopts porous column main beam Beam or thin plate with combination of the kiln, layer number of products can be adjusted freely, greatly reduce the overall weight of the kiln furniture and frame structure, convenient operation and greatly increasing the loading density of the product, and because of reaction-bonded sic materials thermal conductivity, excellent energy-saving than traditional kiln, kiln furniture are made of silicon carbide frame type energy saving more than 20% at least, and greatly increase the service life Pre-reaction sintered SiC frame type energy saving kiln furniture has been widely used in daily porcelain, sanitary ware ceramics, high voltage electric porcelain and other ceramic industries.

1 (62).jpg1 (14).jpg

1 (65).jpg

1 (51).jpg

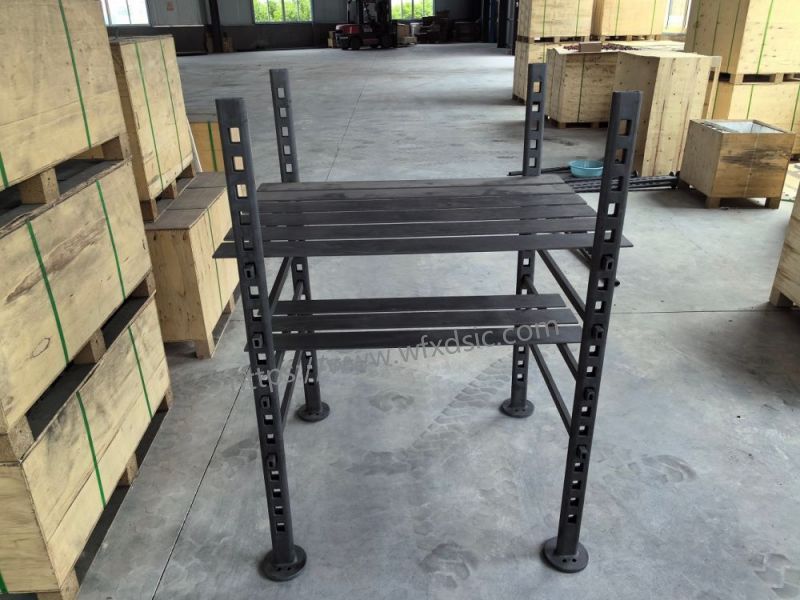

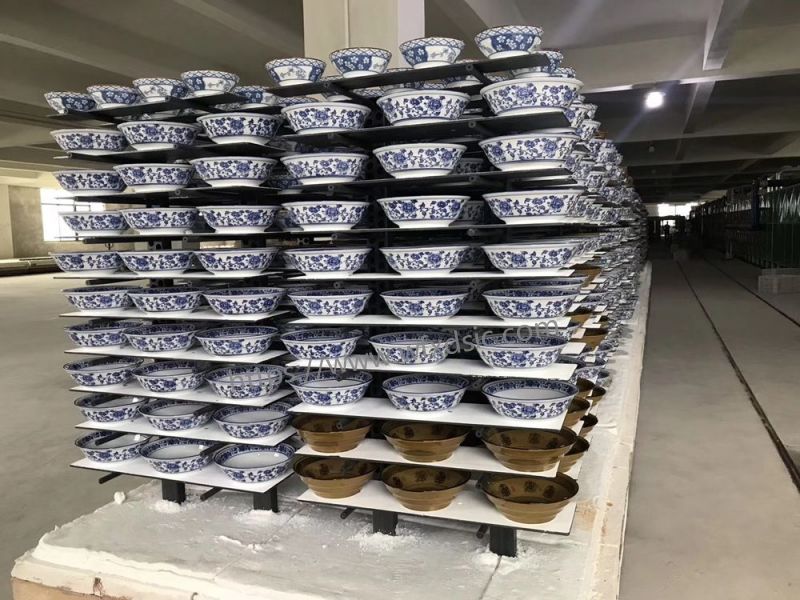

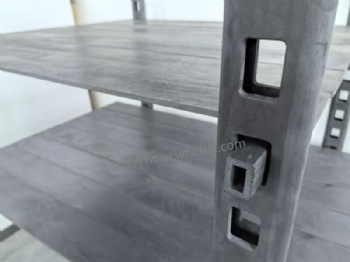

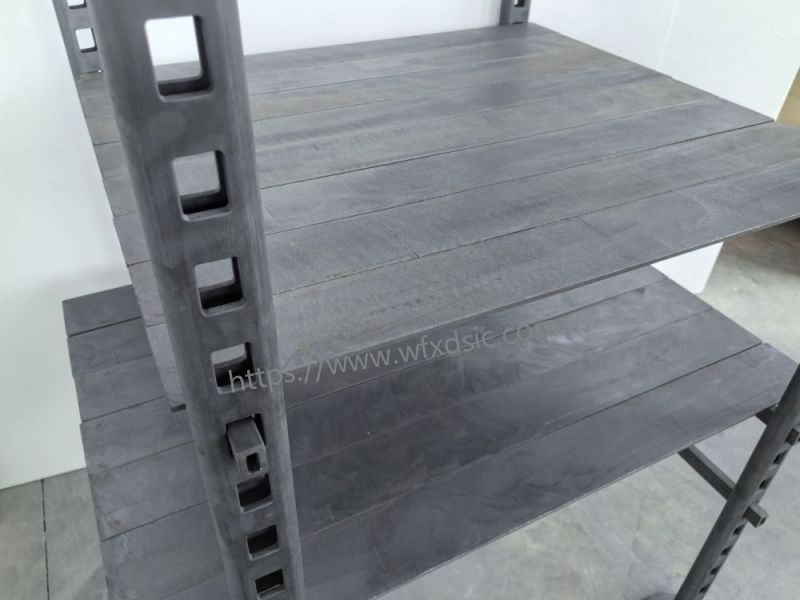

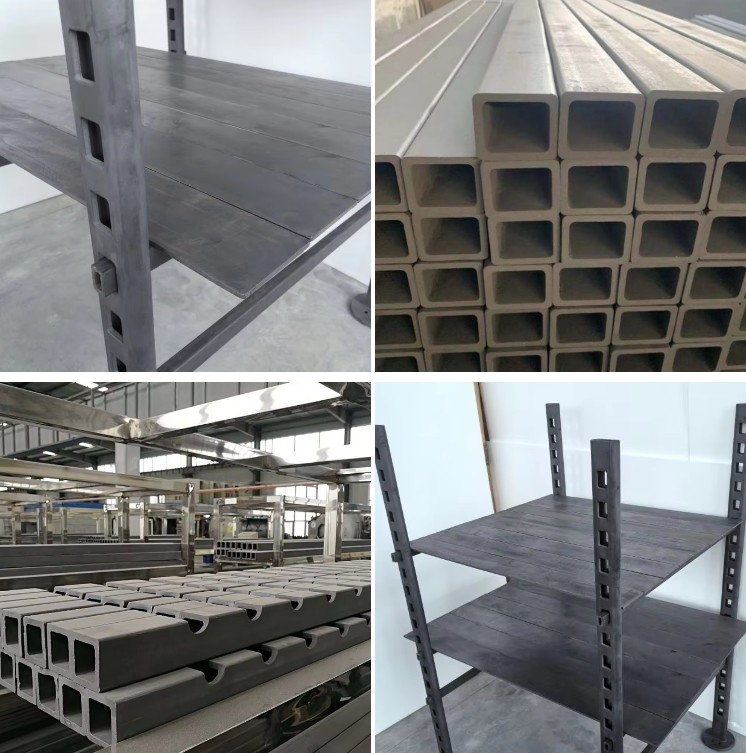

Silicon carbide frame type energy saving layer number can be adjusted freely, greatly reduce the overall weight of the kiln furniture and frame structure,convenient operation and greatly increasing the loading density of the product, and because of reaction-bonded sic materials thermal conductivity, excellent energy-saving than traditional kiln, kiln furniture are made of silicon carbide frame type energy saving more than 20% at least, and greatly increase the service life pre-reaction sintered Sic frame type energy saving kiln furniture has been widely used in daily porcelain, sanitary ware ceramics, high voltage electric porcelain and other ceramic industries.


1 (10).jpg

1 (24).jpg

1 (67).jpg


DETAILS IMAGES



Feature

◊ Superior wear resistance, impact resistance and corrosion resistance
◊ Excellent flatness and temperature resistance up to 1380℃
◊ Excellent oxidation resistance
◊ Good dimensional control of complex shapes
◊ Easy installation
◊ Longer service life ( about 6 times more than that of alumina ceramic )

Product Parameters

Item
UnitData
Temperature of application°C≤1380
Densityg/cm³﹥3.02
Open porosity%0
Bending strengthMpa250(20°C )
Mpa280(1200°C )
Modulus of elasticityGpa330(20°C )
Gpa300(1200°C )
Thermal conductivityW/m.k45(1200°C)
Coefficient of thermal expansionK∧-1×10∧-64.5
Rigidity
9.6
Acid-proof alkaline
45(1200°C)
