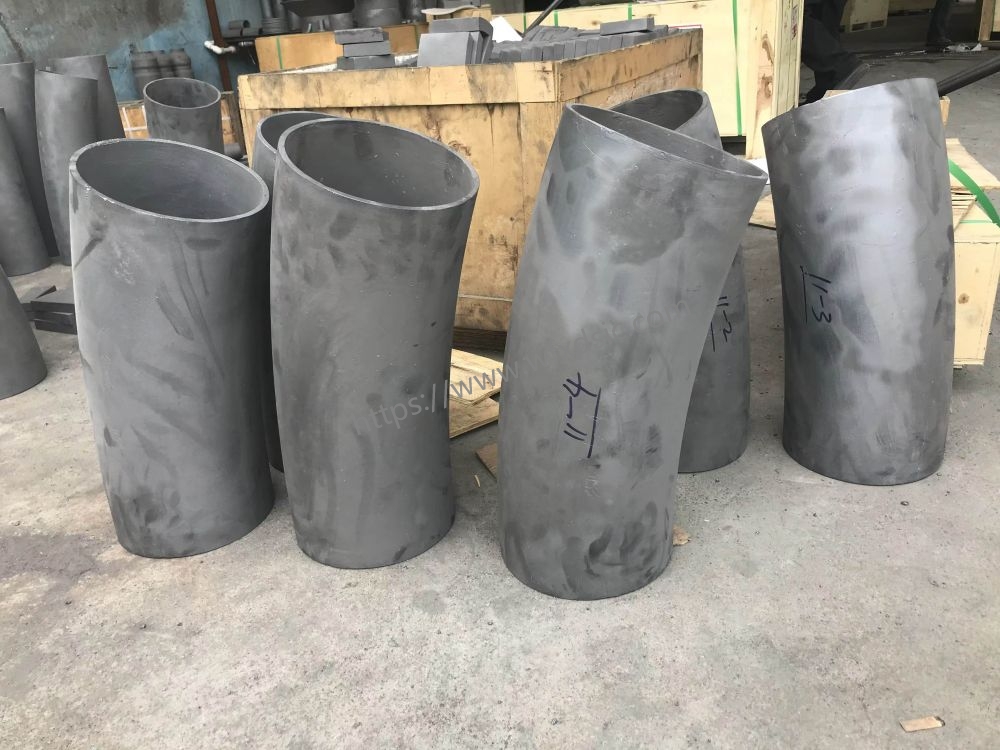

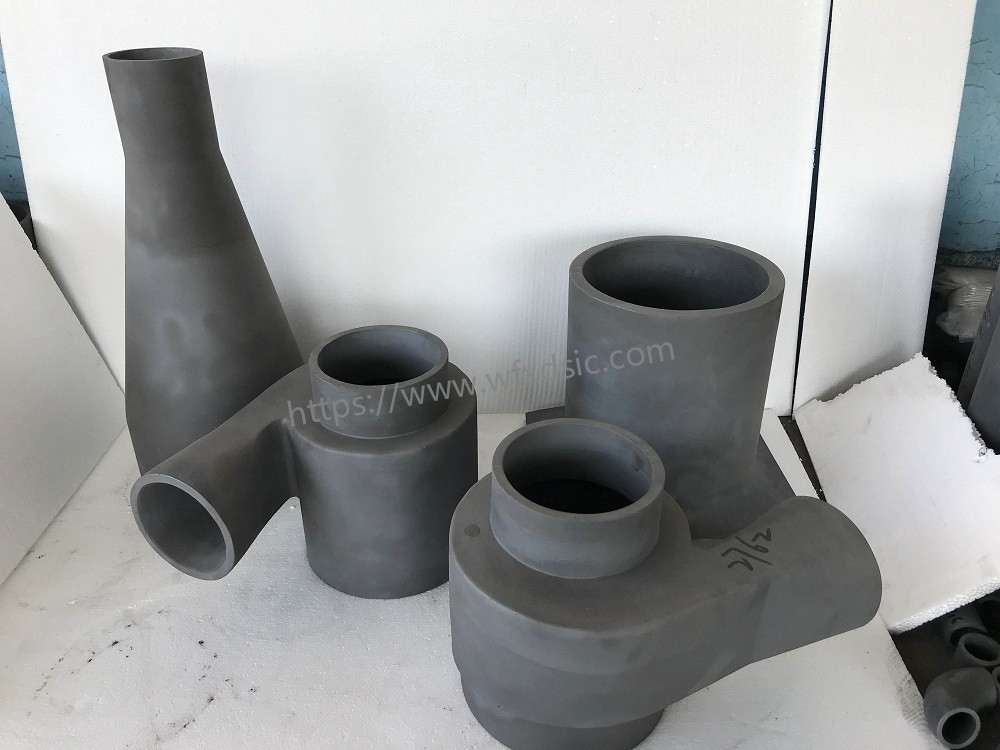

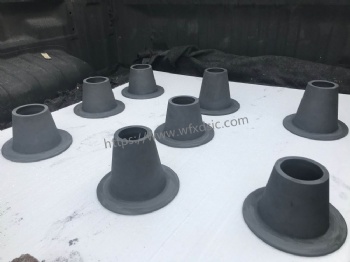

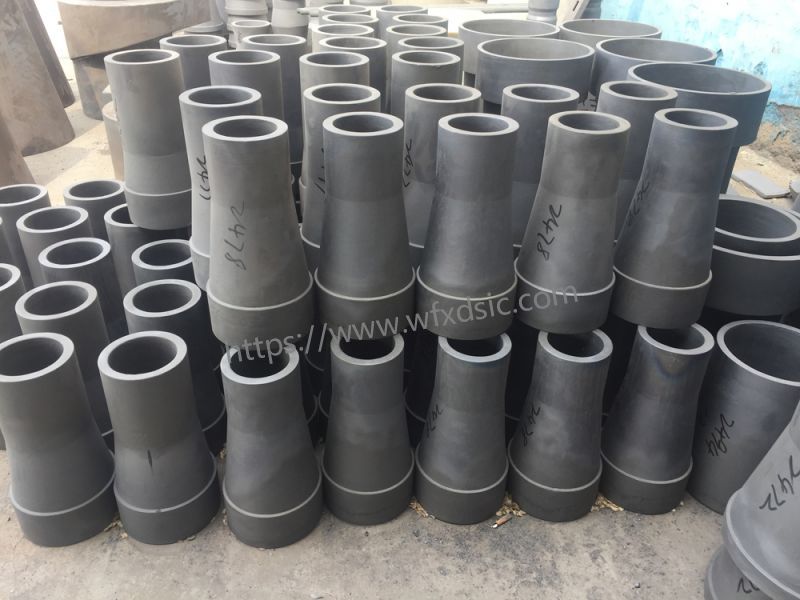

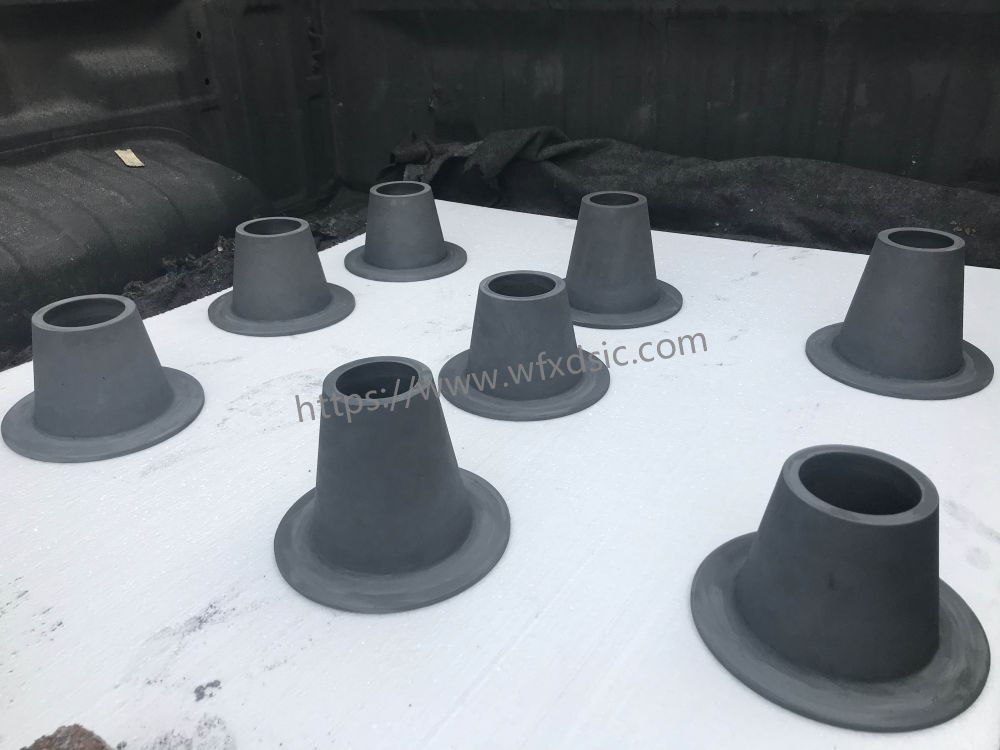

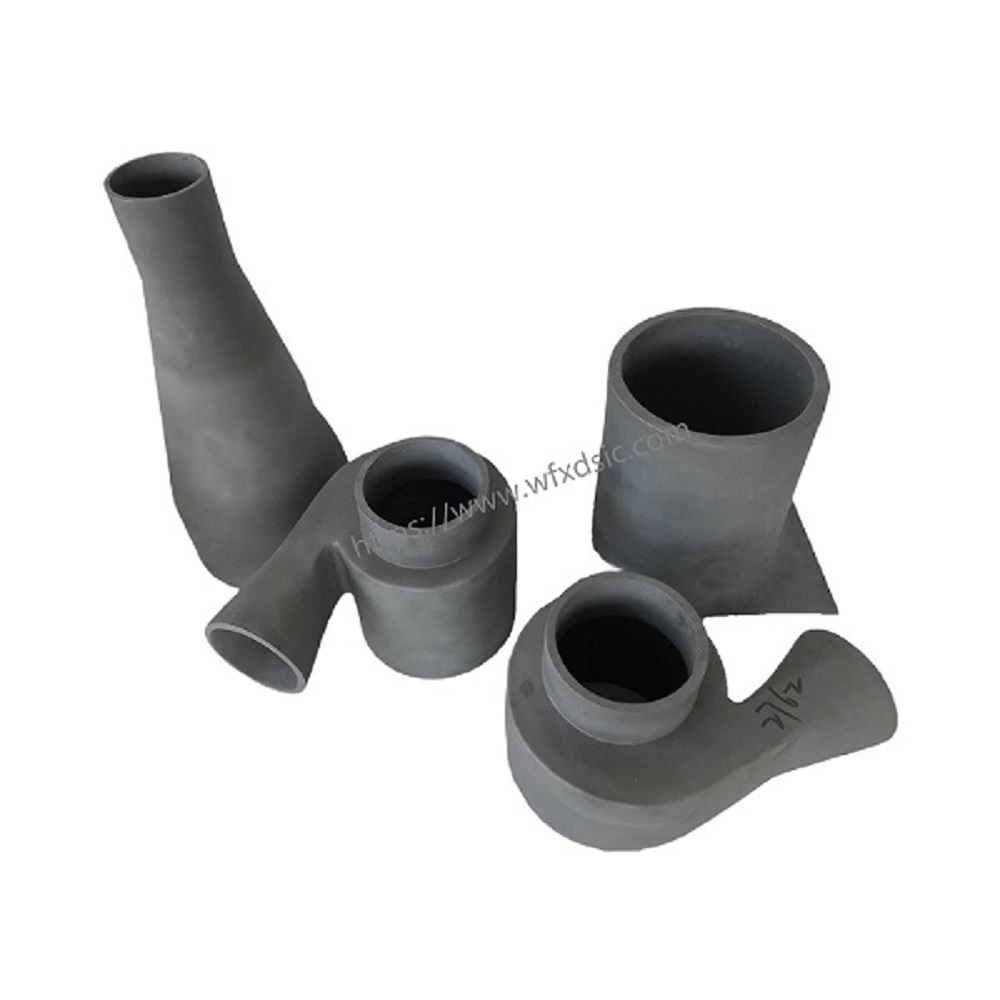

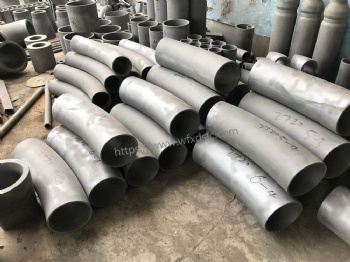

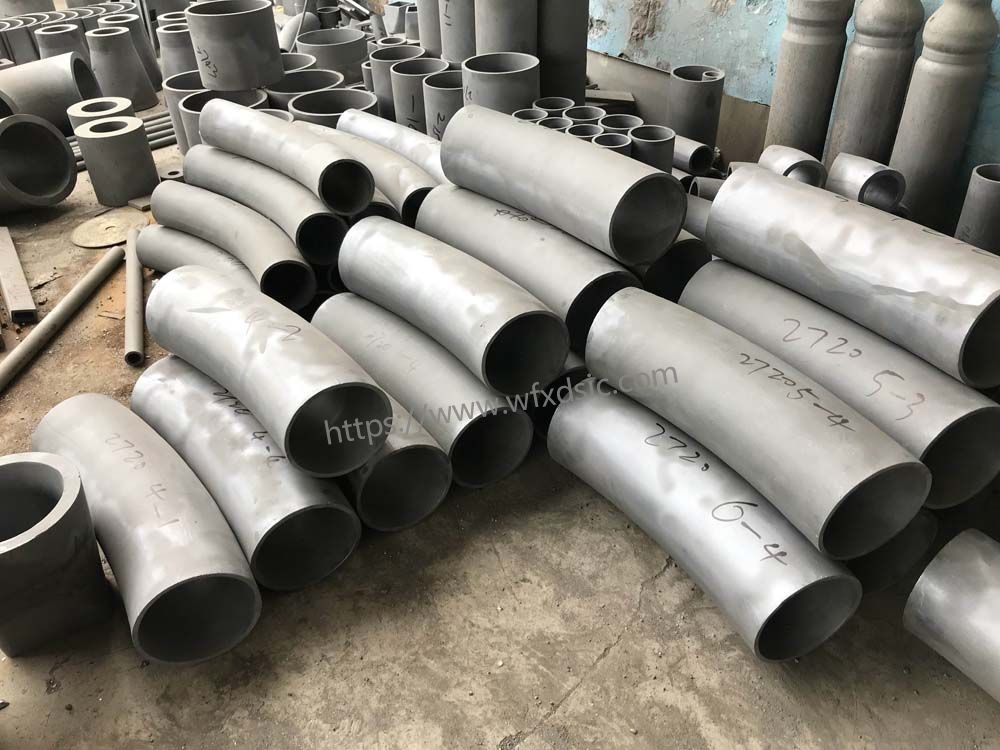

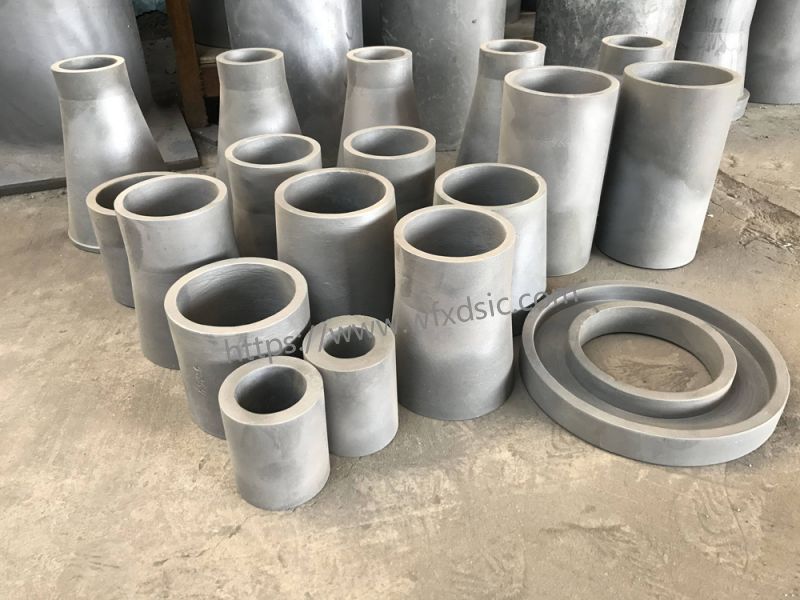

Silicon carbide wear-resistant liner, can grouting molding can dry pressing molding, mohs hardness of 9.6 above, hardness is second only to diamond, has the high wear-resisting corrosion resistance impact resistance paste construction is convenient wait for a characteristic, can be made into arc plate, fan-shaped plate, perforated plate, plate,the impact block size etc, through the ceramic adhesive stick welding process, such as vortex chamber stitching line in hydrocyclone The inner wall of the conical pipe, the bend of the sink nozzle and the three-way diameter change pipe can bearthe impact wear of high concentration and large particle material fora long time, so as to achieve the effect of wear and corrosion resistance and reduce the production cost.

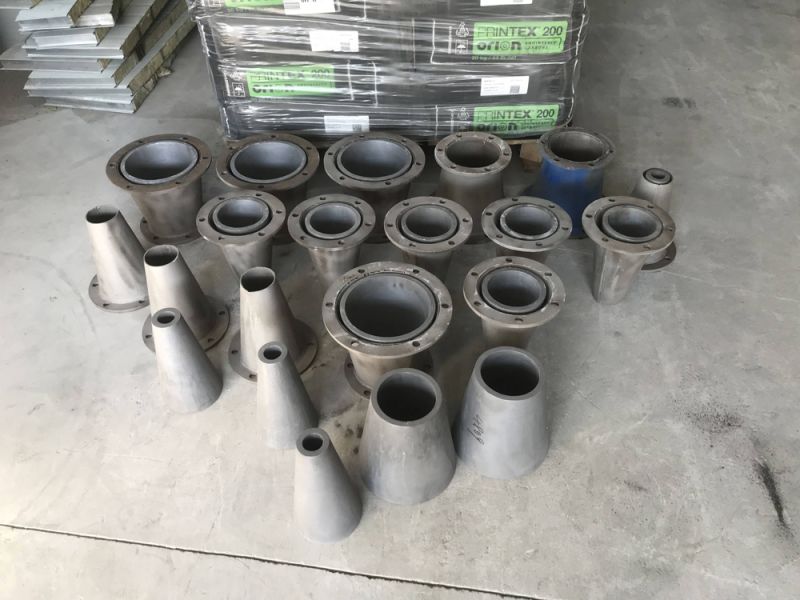

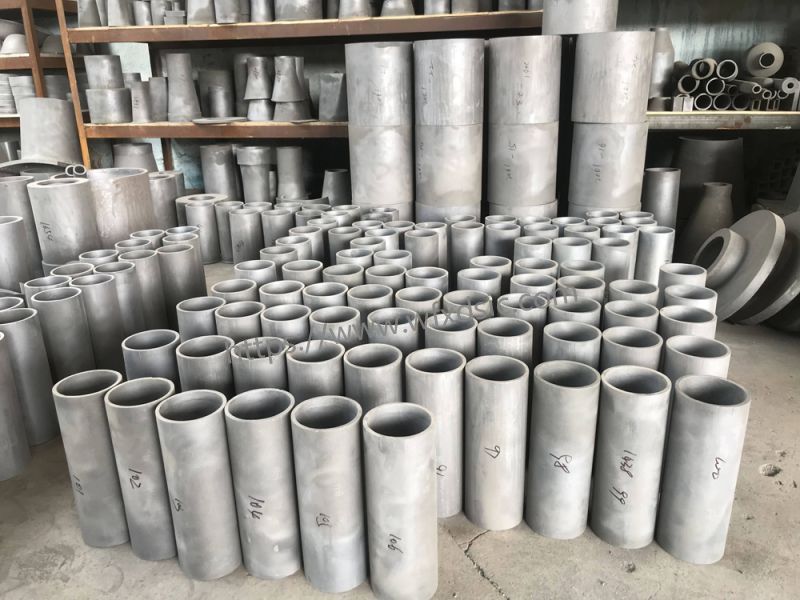

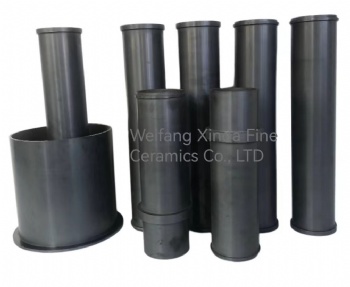

PRODUCT DESCRIPTIONSilicon carbide ceramics are the industrial ceramics with the highest hardness which can be matured and applied at present.Reaction bonded silicon carbide liner is widely used in mining, ore crushing, screening and high wear and corrosion fluid material conveying.Silicon carbide steel shell lined with products, due to its good abrasion resistance and corrosion resistance,is suitable for conveying powder, slurry, widely used in mining.
DETAILS IMAGESSilicon carbide product has the basic properties and main characteristics of high strength, high temperature resistance,high hardness, high wear resistance, corrosion resistance, high temperature oxidation resistance, rapid cooling and rapid heat resistance, good thermal conductivity and high thermal efficiency. It is one of the products with the best performance and the highest cost performance in the field of special industrial ceramics.
Feature
◊ Superior wear resistance, impact resistance and corrosion resistance
◊ Excellent flatness and temperature resistance up to 1380℃
◊ Excellent oxidation resistance
◊ Good dimensional control of complex shapes
◊ Easy installation
◊ Longer service life ( about 6 times more than that of alumina ceramic )
Product Parameters
| Item | Unit | Data |
| Temperature of application | °C | ≤1380 |
| Density | g/cm³ | ﹥3.02 |
| Open porosity | % | 0 |
| Bending strength | Mpa | 250(20°C ) |
| Mpa | 280(1200°C ) | |
| Modulus of elasticity | Gpa | 330(20°C ) |
| Gpa | 300(1200°C ) | |
| Thermal conductivity | W/m.k | 45(1200°C) |
| Coefficient of thermal expansion | K∧-1×10∧-6 | 4.5 |
| Rigidity | 9.6 | |
| Acid-proof alkaline | 45(1200°C) |
COMPANY PROFIEWeifang Xinda Fine Ceramics Co.,LTD.was established in 2014.The company serves electric power,iron and steel,mining,metallurgy,chemical industry,coal,wet flue gas desulfurization,industrial kilns and other special industries.
The company has introduced German advanced technology and is in a leading position.The main products are Silicon carbide cyclone liner,Silicon carbide burner nozzle,Silicon carbide frame energy-saving kiln furniture,silicon carbide grinding barrel,silicon carbide radiant tube,silicon carbide slurry pump impeller,silicon carbide desulfurization nozzle,silicon carbide beam,silicon carbide roller,silicon carbide plate,silicon carbide wear resistant,silicon carbide crucible,silicon carbide heat-exchanger tube,silicon carbide wafer boat and other products.The hardness of the product is second only to diamond,and it has the main characteristics of high strength,high hardness,high wear resistance,corrosion resistance,high temperature oxidation resistance,cold and heat resistance,high thermal efficiency.It is one of the products with the best performance and the highest cost performance in the field of special industrial ceramics.
Our company's reaction sintered silicon carbide products have reached the European industry standards,quality reached the world advanced level,the products have been exported to Russia,Korea,Japan, Vietnam,the United States,Germany,Italy, South Africa, Australia, Malaysia,Thailand, the United Arab Emirates and other countries and regions. With the tenet of quality first,customer first,we sincerely welcome friends from all over the world to discuss cooperation and create a better future together.
